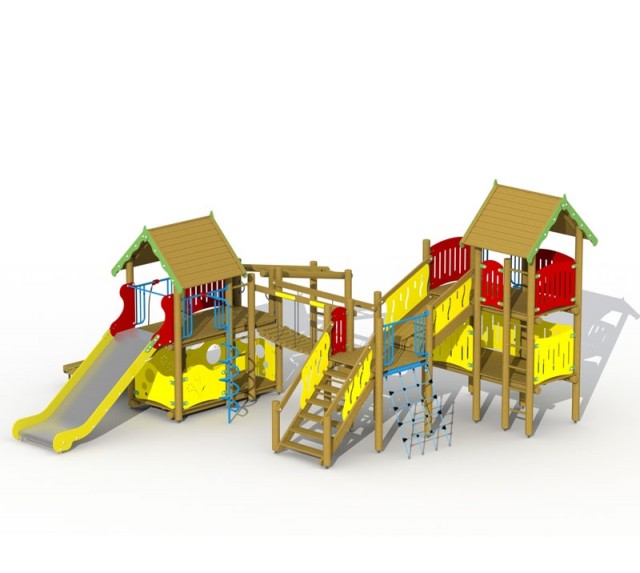

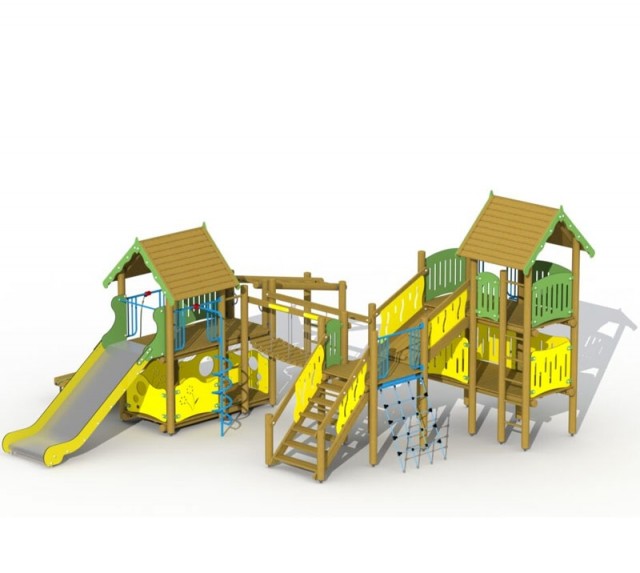

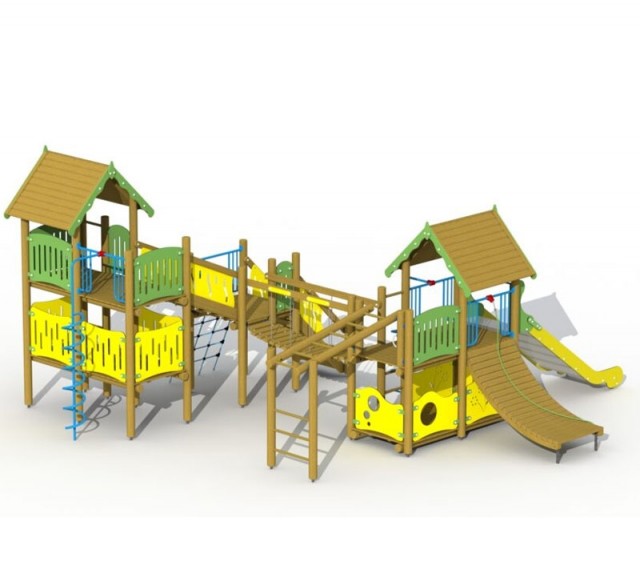

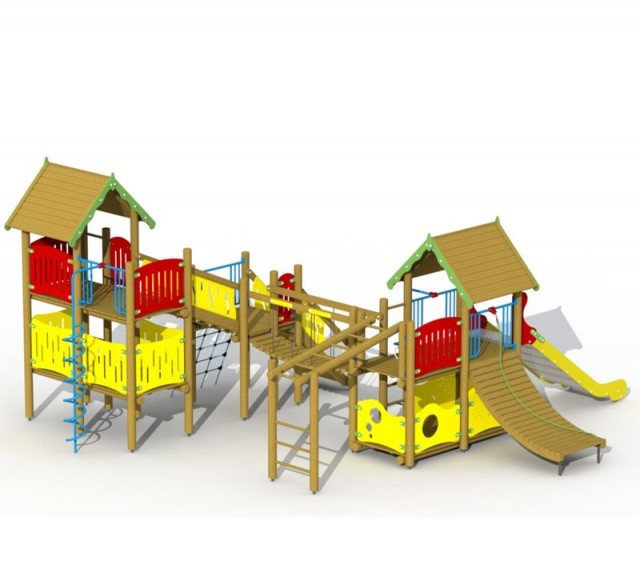

LONDON

GENERAL

DIMENSIONS 7,8 x 7,6 x 3,9 m

FALL HEIGHT 2,00 m

AGE 3 - 15

ASSEMBLY 2p. - 16h.

SAFETY ZONE 101 m²

CERTIFICATION EN-1176

CONCRETE REQUIRED Yes

MATERIALS

• Type of wood: larch; ladder rungs in ash
• 12 cm thick round wooden poles cut outside the heart
• Roof boards with edge 22 mm thickness
• HDPE polyethylene sheet material 19 mm thick
• Floor boards 22mm thick
• Staircase with integrated rungs of 35 mm thickness
• Low stainless-steel slide with HDPE polyethylene sidewalls
• Footbridge on steel wire; boards 45 x 95 mm
• Climbing ladder with integrated rungs 40 mm
• Ropes and nets in 16 mm polypropylene rope with steel-wire reinforcement
• Galvanized metal base supports
• Plastic clamps
• Metal parts treated against rust and polyester coated
